Laser CuttingProfiles from your CAD.
3kW and 6kW fiber laser machines cut precise profiles from DXF and DWG files, eliminating tooling and handling sheets up to 7 × 10 feet.
WHAT IS IT

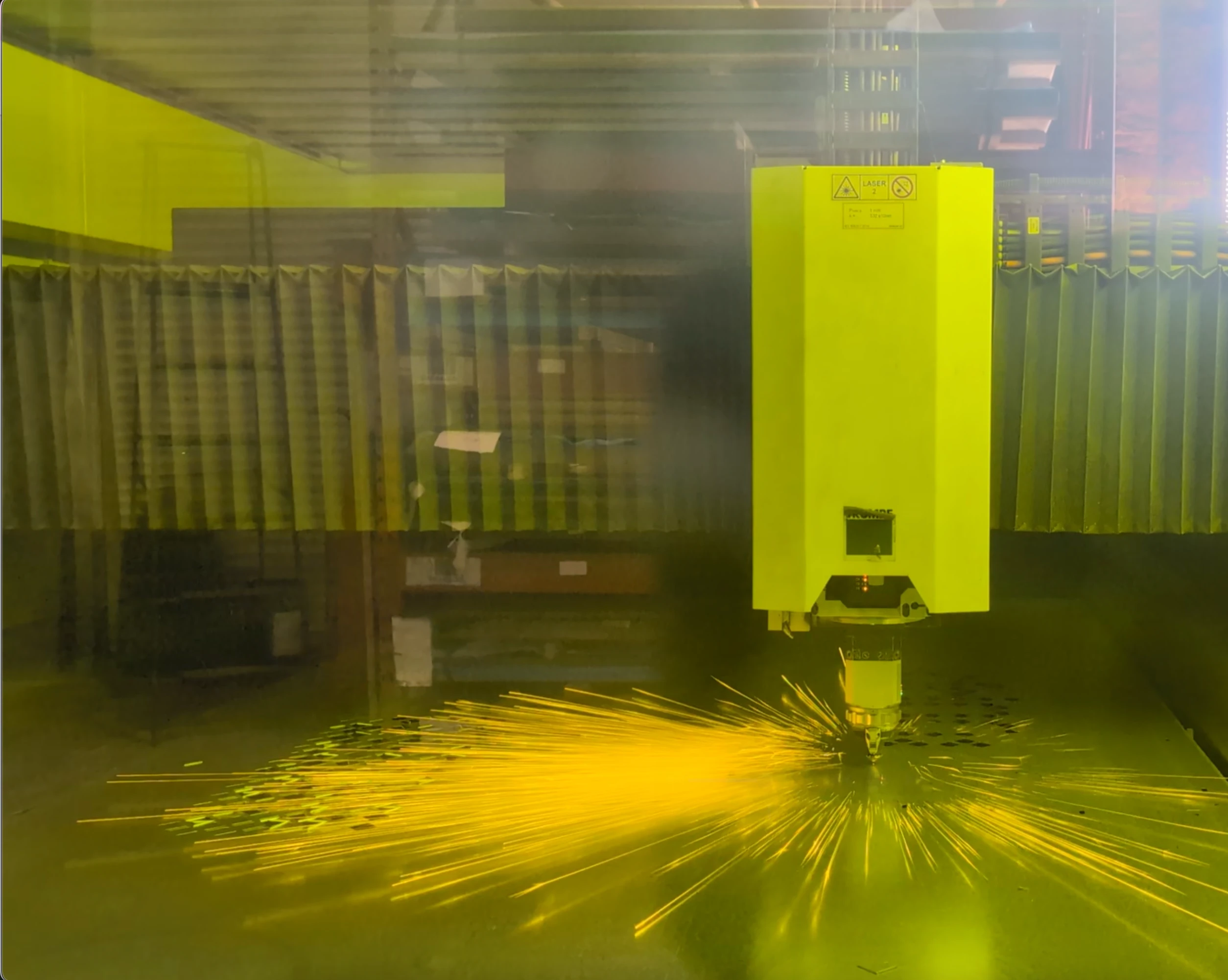

Laser cutting is a precision manufacturing process that uses a high-powered fiber laser to cut sheet metal into accurate, repeatable parts. Guided directly by CAD files, laser cutting produces clean edges, intricate profiles, and tight tolerances for stainless steel, aluminum, and carbon steel, making it ideal for both prototypes and production runs.

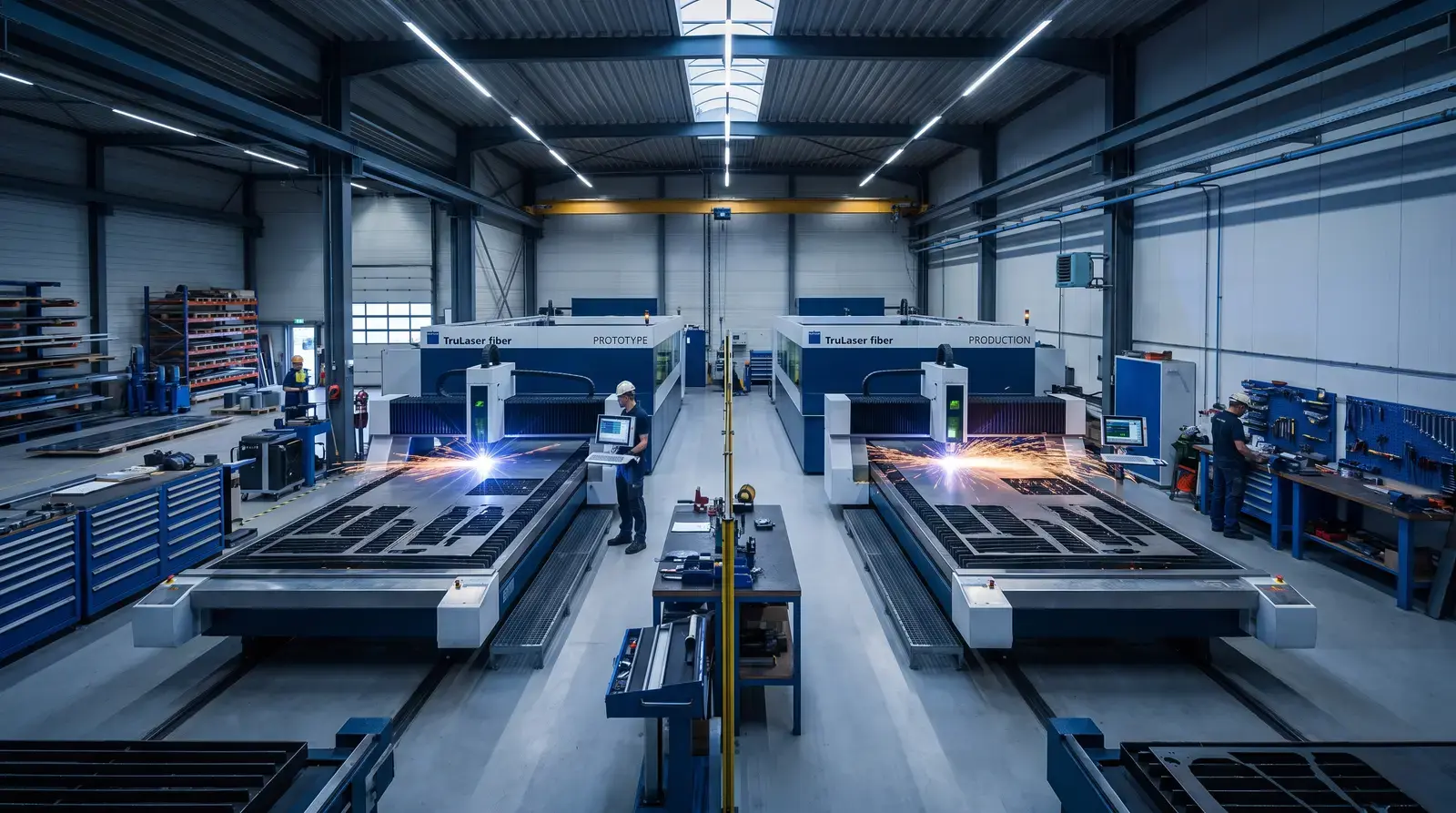

Our 3kW and 6kW fiber laser cutting machines feature 5' × 10' and 7' × 10' cutting beds, allowing us to efficiently process everything from small precision components to large-format sheet metal.

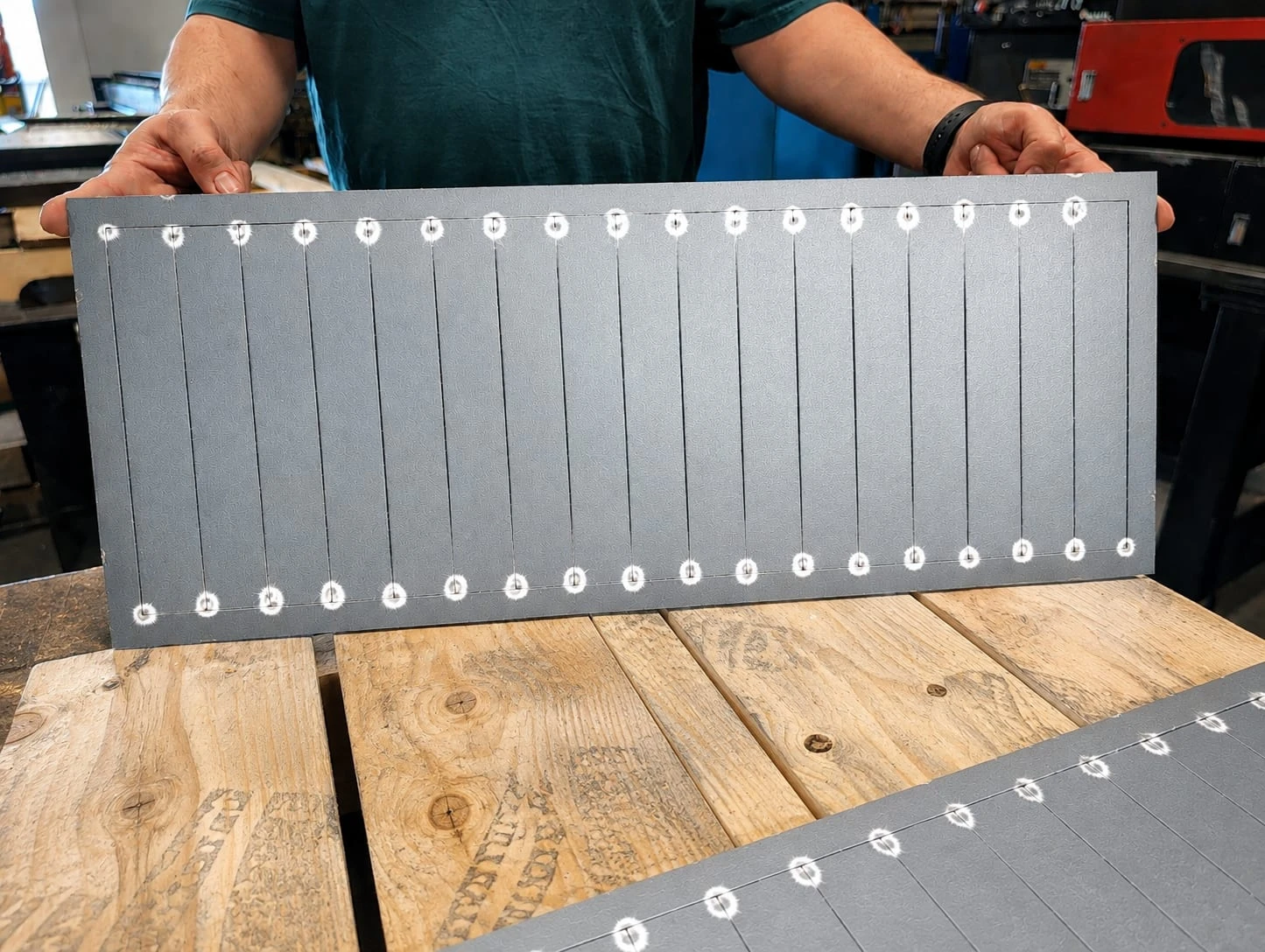

When to laser
Choose laser when the part needs contours, internal holes, or irregular outlines that a shear cannot make.
Prototypes and production runs share the same path. New geometry is just a new file.
How it works

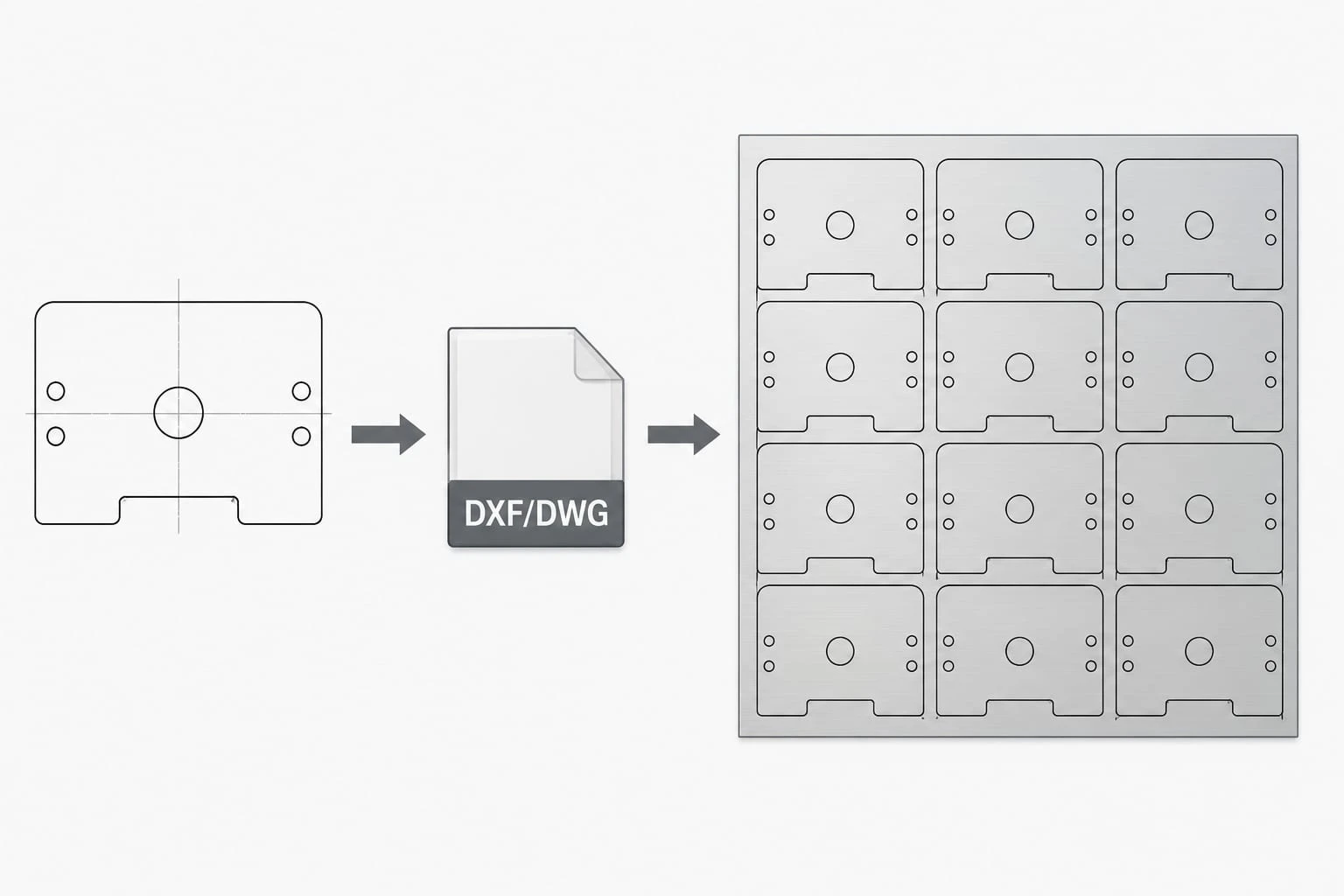

From DXF to nest to finished blank
1 · NEST
Nest the file
Your DXF or DWG goes into nesting software. Parts are arranged to minimize scrap before the machine ever fires.
DXF · DWG · MATERIAL EFFICIENCY
Laser vs punch
Which process fits the feature set?
Laser cutting
- Complex profiles and one-off geometry
- No hard tooling or setup dies
- Tight tolerances straight from CAD
- Best for prototypes and varied nests
CNC punching
- Repeated holes and slots at volume
- Formed features such as louvers and embosses, in-cycle
- Often lower cost on high-quantity flat patterns
- Standard turret tooling, fast cycles
Many jobs use both. Send the flat pattern and we will help you identify the right services.
Talk it throughEquipment
Equipment & Capacity
| Machine | Bed Size | Output | Materials |
|---|---|---|---|
| TruLaser 1030 | 5' × 10' bed | 3 kW | Stainless · Galvanized · Aluminum · CR/HR Steel |
| TruLaser 1030 | 7' × 10' bed | 6 kW | Stainless · Galvanized · Aluminum · CR/HR Steel |
Materials
Material Capabilities
Cold Rolled Steel (CRS)
Smooth, consistent CRS for general fabrication. It is strong, weldable, and economical for brackets, frames, and formed parts.
- Smooth finish
- Weldable
- Cost-effective
Hot Rolled Pickled & Oiled
HR P&O plate and sheet with mill scale removed and a light oil coat, ready for cutting, forming, and welding.
- Scale-free
- Weldable
- Production-ready
Stainless Steel 304
304 stainless in 2B and #4 finishes for corrosion resistance and clean cosmetic surfaces.
- 2B finish
- #4 finish
- Corrosion resistant
Aluminum & Coated Steels
Aluminum for lightweight parts, plus galvanized and other coated steels for weather and washdown environments.
- Lightweight aluminum
- Coated steels
- Corrosion protected
Need a different alloy or grade? Send the spec and we’ll confirm the fit.
Tradeoffs
Advantages & considerations
Advantages
Considerations
Start a job
How to order
1
Upload Design File (DXF/DWG)
Send your cut file with material and quantity. Flat geometry is all we need.
2
Instant / Manual Quote
Simple parts quote fast; complex nests get a careful manual review.
3

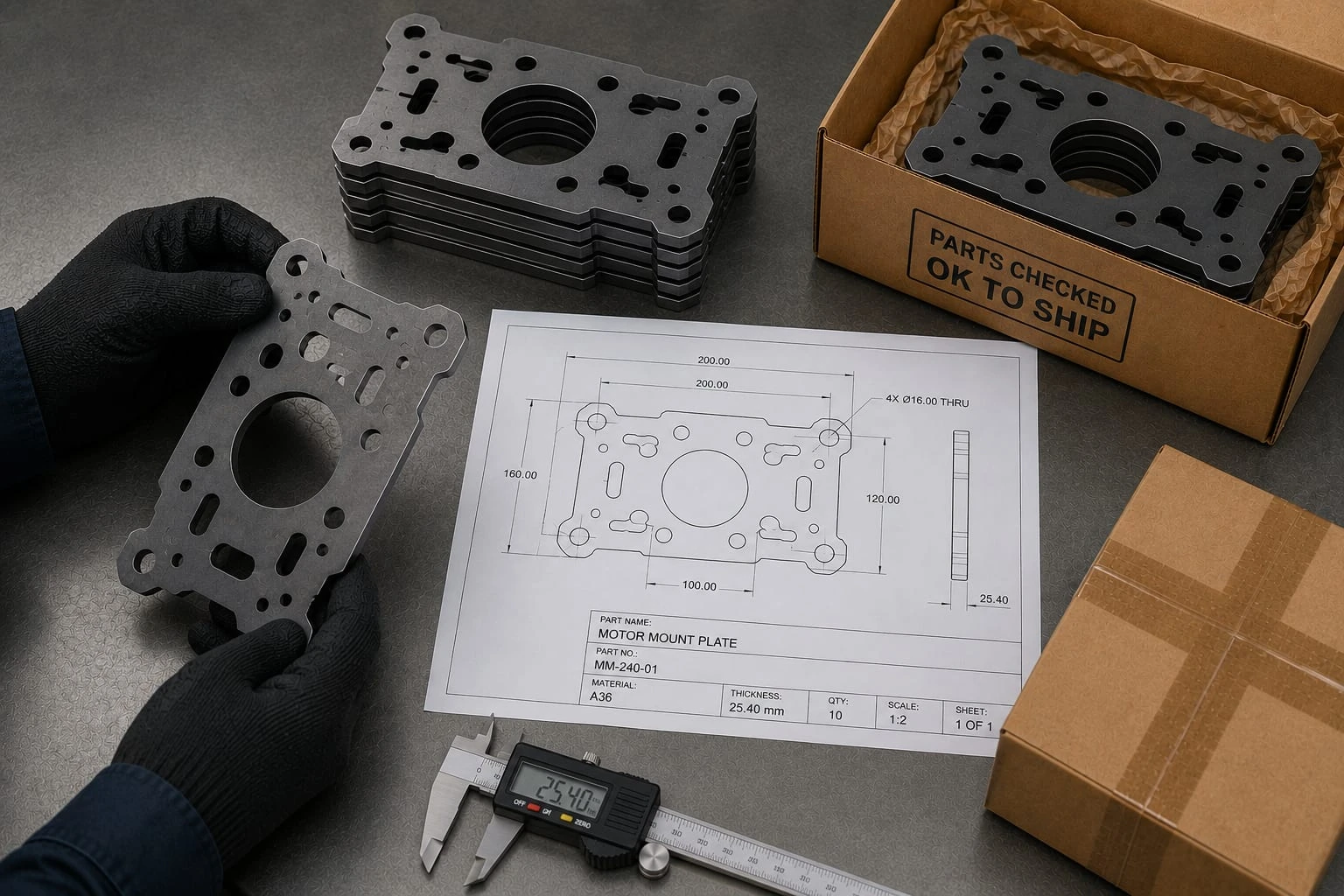

Cutting & Quality Control
Parts are nested, cut, deburred as needed, and checked against your file.
4
Delivery / Pickup
Flat parts ship stacked and protected, or continue into forming and welding.
Other Services
Related Services
Ready to cut from CAD?
Upload a DXF or DWG with material and quantity. Simple nests quote fast.
